項目Item

參數Parameters

項目Item

參數Parameters

定位截割高

Positioning cutting height (m)

4.2—6.57

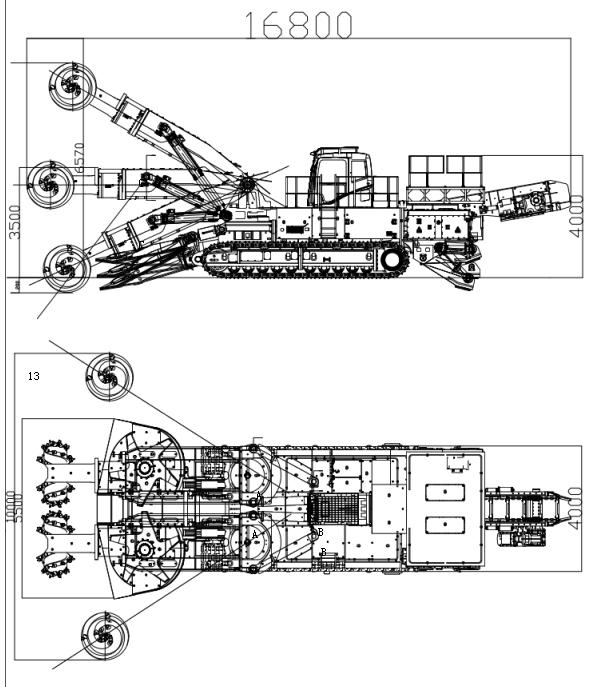

外形尺寸Overall dimension

長

Length

16.8

Positioning Cutting Width (m)

定位截割寬

Standard 5.5m blade

標配5 .5m鏟板

6—10

Width

寬

鏟板寬:5.5

Shovel width: 5.5M

爬坡能力Gradeability

±15°

High (m)

高

1.機身高:4 2.截割頭水平放置最高點3.5

Fuselage height: 4 The highest point where the cutting head is placed horizontally3.5

可/經濟截割巖石單向抗壓強度Compressive strength of rock that can be cut/economically cut

≤70MPa

整機重量Total Weight

168t

掘進機適合巷道性質The roadheader is suitable for the nature of the roadway

巖巷掘進Rock tunneling

供電電壓Supply voltage

1140V

臥底深度Undercover depth

150mm

油泵電機功率Oil pump motor power

200kW

截割電機功率Cutting motor power

2×280/200kW

額定輸出功率

Rated output power

757kW (excluding the second)

截割頭轉速/伸縮量Cutting head speed/stretch

36.7rpm/Does not stretch

供水的PH值PH of water supplyvalue

6-8

Chloride ion content

≤200mg/l

Sulfate ion content

≤400mg/l

裝載形式Loading form

Five-tooth star wheel

要求井下供水壓Request downholeWater supply pressure

3-8MPa

運輸機形式Transporter form

Double side chain scraper type

22×86-C

供水量Water supply

≥120/30L/min

運輸機鏈速Conveyor chain speed

62m/min

機身地隙Fuselage clearance

240mm

最大不可拆卸件尺寸(長×寬×高)

Maximum not detachable parts size

(length×

widthx high)

本體架Body frame

2.5×3.4×1.4m

最大不可拆卸件重量(本體架)

Maximum weight of non-detachable parts (body frame)

9800kg

一運前溜槽A front chute

6.5×0.98×0.8m

后支承架Rear support frame

1.65×2.56×1.34m

行走速度Walking speed

0~5.6m/min

履帶寬度Track width

850mm

星輪轉速Star wheel speed

33rpm

三聯液壓泵Triple hydraulic pumps

260+260+145ml/r

裝載能力Loading capacity

5 m 3 /min

對地壓強Ground pressure

0.15MPa
